Ground Adjustable Available
74" 2-B 0-200, 0-233 & 0-235 STOL CUB TYPE UNDER 125MPH
82" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH HIGH DENSITY ALTITUDE
82" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH HIGH DENSITY ALTITUDE
74" 2-Bladed designed for Cub Type under 125mph.
Molded carbon fiber blade with a wood/ foam core.
Available in SAE-1 bolt pattern
82" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH HIGH DENSITY ALTITUDE
82" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH HIGH DENSITY ALTITUDE
82" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH HIGH DENSITY ALTITUDE
82" 2-Bladed designed for Cub Type under 110mph. Has more blade area to help with STOL performance with high density altitude
Molded carbon fiber blade with a wood/ foam core.
Rotax Pattern 8mm or 5/16"
Mass Moment of Inertia 7050 kg cm²
78" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH SEA LEVEL TO 6,000' DA
78" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH SEA LEVEL TO 6,000' DA
78" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH SEA LEVEL TO 6,000' DA
78" 2-Bladed designed for Cub Type under 110mph. Optimized for STOL around sea level to 6,000' DA.
Molded carbon fiber blade with a wood/ foam core.
Rotax Pattern 8mm or 5/16"
Mass Moment of Inertia 7000 kg cm²
64" 3-B ROTAX 912 130MPH +/-
78" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH SEA LEVEL TO 6,000' DA
78" 2-B ROTAX 915/916 STOL PROP UNDER 110MPH SEA LEVEL TO 6,000' DA
64" 3-Bladed designed for
Molded carbon fiber blade with a wood/ foam core.
Rotax Pattern 8mm or 5/16"
Mass Moment of Inertia 7000 kg cm²

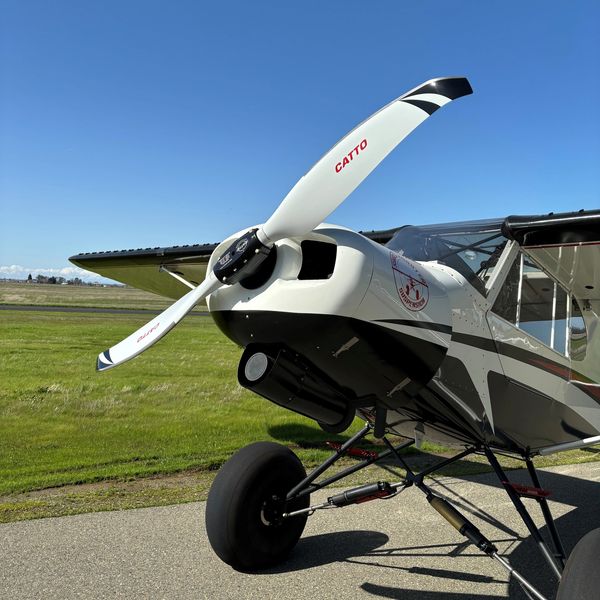

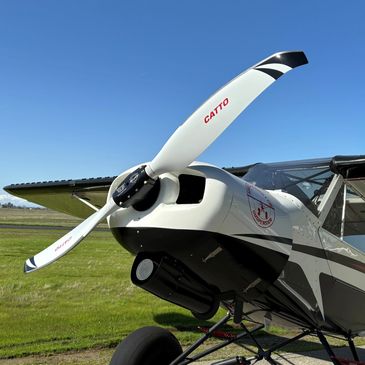

Design, Development and Manufacturing
New Release! This is a completely new blade design. Craig Catto developed this design and validated with our partner, MV Aero using CFD, Computational Fluid Dynamics. It is a completely new airfoil with a swept tip design. These blades are manufactured using VARTM- vacuum assisted resin transfer molding. We use carbon as the structure and a mixture of hardwood and foam core. Carbon allows for a very lightweight, durable and forgiving blade. We continue to use the wood core to dampen harmonics and absorb vibration. Electroformed Nickel leading edge protection is installed after the propeller is built.
Structural Materials & Nickel Leading Edge
Carbon is extremely strong, durable, forgiving and light weight, this is this is the structure of our blade. We use wood for a core because it dampens harmonics, absorbs vibration and its high density properties. We do use some foam to lighten the core. We use VARTM to infuse the blade.
After the blade is manufactured we install a nickel leading edge using aerospace adhesive and vacuum. Nickel is much more durable than stainless or aluminum so you will not see any pitting or erosion.

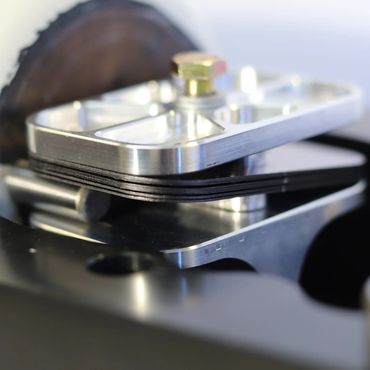

Hub & Pitch Change
The blades will always be the same pitch with zero play! The blades have a pitch pin in the root of the blade which sits on a pitch block in the center of the hub. You change the pitch by moving a shim below or on top of the pin which moves the angle of the blade. The hub comes with 8 shims which is 16" of pitch range.
Precision machining by TK1/ Monster Aircraft Parts. The hubs have very tight tolerances which makes for a streamline installation.

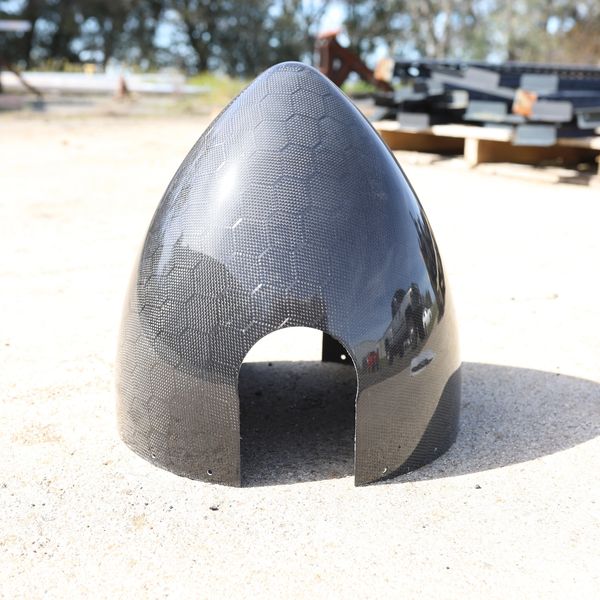

Spinner
We have a 12" spinner available. The spinner dome is carbon fiber and manufactured using VARTM. Our front bulkhead stationary and it self-centers in the center hole of the hub. We use an aluminum rear bulkhead.
Paint Colors
You can choose blade and tip color.
Third color for the logo or second swoosh on the tip is an additional $75.
You can also choose flat or glossy
